Accelerated for the Edge

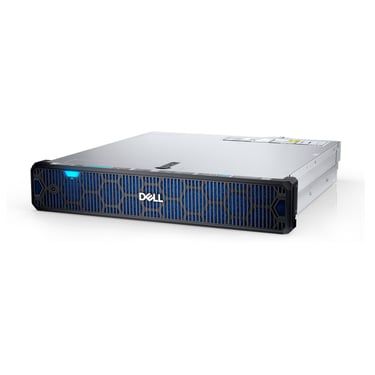

Rugged 2U, two-socket server built for the Edge. Ideal for machine aggregation, AI inferencing, industrial automation, machine learning and analytics.
Technical Specifications
Processor
Two 4th Generation Intel® Xeon® Scalable processors with up to 32 cores per processor or
Two 5th Generation Intel® Xeon® Scalable processors with up to 16 cores per processor
Memory
● 16 DDR5 DIMM slots, supports RDIMM 2 TB max, speeds up to 5200 MT/s. Supports registered ECC DDR5 DIMMs only
Storage controllers
● Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i
● Software RAID: S160
● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or internal USB module
Drive Bays
Front bays: Up to 4 x 2.5-inch SAS/SATA/NVMe SSD drives, 61.44 TB max, Up to 8 x E3.S NVMe direct drives, 51.2 TB max
Hot swap redundant Power Supplies
● 1800 W Titanium 200—240 VAC or 240 HVDC
● 1400 W Platinum 100—240 VAC or 240 HVDC
● 1400 W Titanium 277 VAC or 336 VDC
● 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
● 1100 W -48 — (-60) VDC
Cooling Options
Air cooling
Fans

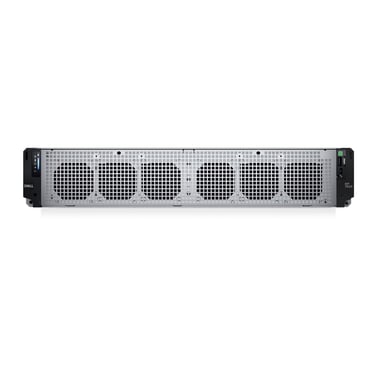

● Six cold swap cooling fans
Dimensions
Rear Accessed configuration
Height — 86.8 mm (3.41 inches) • Width — 482.6 mm (19 inches) • Depth — 448.8 mm (17.6 inches) Ear to rear wall — 496.3 mm (19.53 inches) with bezel — 471.8 mm (18.57 inches) without bezel
Front Accessed configuration
Height — 86.8 mm (3.41 inches) • Width — 482.6 mm (19 inches) • Depth 572 mm (22.51 inches) with bezel — 471.8 mm (18.57 inches) without bezel
Form Factor
2U rack server
Embedded Management
● iDRAC9
● iDRAC Direct
● iDRAC RESTful API with Redfish
● iDRAC Service Module
● NativeEdge Endpoint*
● NativeEdge Orchestrator*
Bezel

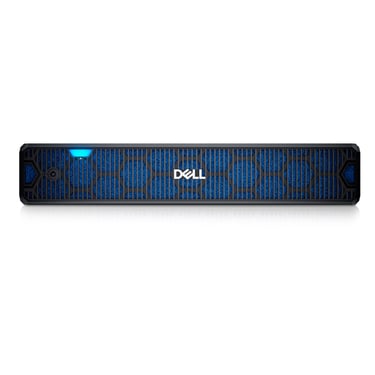

Optional security bezel with dust filter (dust sensor available only for Front Accessed configuration systems)
OpenManage Integrations
● Microsoft System Center
● OpenManage Integration with Windows Admin Center
● OpenManage Integration with ServiceNow
● OpenManage Integration for Microsoft System Center
● OpenManage Enterprise Integration for VMware vCenter
● Red Hat Ansible Modules
● Terraform Providers
● VMware vCenter and vRealize Operations Manager
Security
● Cryptographically signed firmware
● Data at Rest Encryption (SEDs with local or external key mgmt)
● Secure Boot
● Secured Component Verification (Hardware integrity check)
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC9 Enterprise or Datacenter)
● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Network Options
1 x OCP card 3.0 (optional)
Embedded NIC
2 x 1 GbE LOM
GPU options
● Up to four 75 W single-width full-height/half-length + one 75 W low-profile, or
● Up to two 350 W double-width full-height/full-length
Ports:
For Rear Accessed configuration
Front ports
● 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
Internal ports
● 1 x USB 3.0 (optional)
Rear ports
● 1 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0,
● 1 x Serial port (optional on slot 5), 1 x VGA

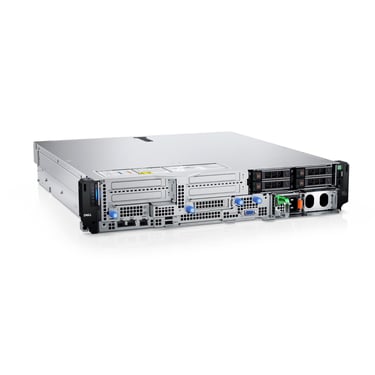

For Front Accessed configuration
Front ports
● 1 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial port (optional on slot 5), 1 x VGA, 1 x iDRAC Direct (Micro-AB USB) port
Internal ports
● 1 x USB 3.0 (optional)
Rear ports
NA
PCIe
2 CPU configuration: Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4)
Operating System and Hypervisors
● Canonical Ubuntu Server LTS
● Microsoft Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi
● Dell NativeEdge OS
