Right-size memory and storage density
Adaptable, efficient, and designed to support a wide range of applications. Multiple configuration options provide scalability and flexibility.
Technical Specifications
Processor
One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor
Memory
● 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 5200 MT/s
● Supports registered ECC DDR5 DIMMs only
Storage controllers
● Internal Controllers (RAID): PERC H365i, H965i, H975i
● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
● External HBAs (non-RAID): HBA465e
Drive Bays

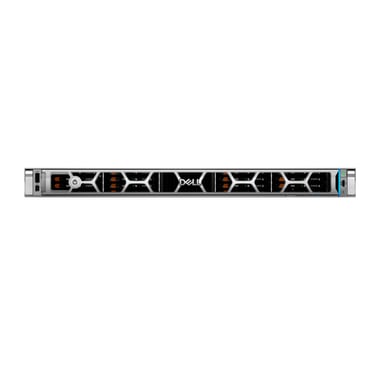

Front bays:
● 4 x 3.5-inch SAS/SATA
● 8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA
● 10 x 2.5-inch with 4 x Universal
● 16 x EDSFF E3.S Gen5 NVMe drives
● 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S
Power Supplies
● Platinum: 800W, 1100W
● Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC*, 1800W*, 2400W*, 3200W, 3200W 277Vac & HVDC
● Telco: 1400W -48VDC
Cooling Options
Air cooling, Direct Liquid Cooling (DLC)
Fans
● Up to four sets (dual fan module) hot plug fans
Dimensions
Height — 42.8 mm (1.68 inches) • Width — 482.0 mm (18.97 inches) • Depth — 816.921 mm (32.16 inches) with bezel — 815.141 mm (32.09 inches) without bezel
Form Factor
1U rack server
Embedded Management
● iDRAC10
● iDRAC Direct
● iDRAC RESTful API with Redfish
● Racadm CLI
● Quick Sync 2 wireless module
Bezel
Optional metal bezel
OpenManage Consoles
● OpenManage Enterprise (OME)
● OME Power Manager
● OME Services
● OME Update Manager
● OME APEX AIOps Observability
● OME Integration for VMware vCenter (with VMware Aria Operations)
● OME integration for Microsoft System Center
● OpenManage Integration for Windows Admin Center
Mobility
N/A
Tools
IPMI
OpenManage Integrations
● RedHat Ansible Collections
● Terraform Providers
Change Management
● Dell Repository Manager
● Dell System Update
● Enterprise Catalogs
● Server Update Utility (SUU)
Security
● AMD Secure Encrypted Virtualization (SEV)
● AMD Secure Memory Encryption (SME)
● Cryptographically signed firmware
● Data at Rest Encryption (SEDs with local or external key mgmt)
● Secure Boot
● Secured Component Verification (Hardware integrity check)
● Secure Erase
● Silicon Root of Trust
● System Lockdown
● TPM 2.0 FIPS, CC-TCG certified
● Chassis Intrusion Detection
GPU Options
Up to 3 x 75W SW
Ports:
Front ports
● 1 x USB 2.0 Type-A (optional LCP KVM)
● 1 x USB 2.0 Type-C (HOST/BMC Direct)
● 1 x Mini DisplayPort (optional LCP KVM)
Internal ports
● 1 x USB 3.1 Type-A

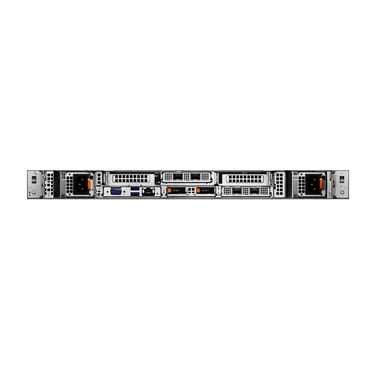

Rear ports
● 1 x 1 Gb dedicated BMC Ethernet port
● 2 x USB 3.1 Type-A
● 1 x VGA
PCIe
Up to three PCIe slots (x16 connector)
● Slot 1 1 x16 Gen5 Full Height or Low Profile
● Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0
● Slot 4: 1 x16 Gen5 Full Height or Low profile
Gen5 PCIe slots
3
OCP Network options
2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
● Slot 2: 1 x16 Gen5 OCP3.0
● Slot 5: 1 x16 Gen5 OCP3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
PCIe Add-in Card (AIC) NIC
100 GbE and 400GbE; NDR VPI (400GbE); FC 32
Operating System and Hypervisors
● Canonical Ubuntu Server LTS
● Microsoft Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi
