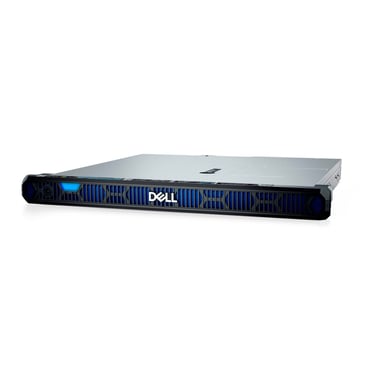

All-purpose, rugged 1U server for the edge
Rugged short depth 1U purpose-built for the edge, designed to excel in a broad range of workloads including telecom, retail, manufacturing and defense.
Technical Specifications
Processor
● One 5th Generation Intel Xeon Scalable and Edge-Enhanced processor with up to 16 cores per processor
● One 4th Generation Intel Xeon Scalable and Edge-Enhanced processor with up to 32 cores per processor
Memory
8 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 5600 MT/s. Supports registered ECC DDR5 DIMMs only
Storage controllers
● Internal Controllers: PERC H965i, PERC H965e, PERC H755, PERC H355, HBA355i
● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs
● External HBA (non-RAID): HBA355e2 NVMe SSDs
● Software RAID: S160
Drive Bays
Front bays: Up to 4 x 2.5-inch SATA, SAS, or NVMe SSDs max 30.72 TB
Hot swap redundant - Power Supplies
● 1800 W Titanium 200—240 VAC or 240 HVDC
● 1400 W Platinum 100—240 VAC or 240 HVDC
● 1100 W Titanium 100—240 VAC or 240 HVDC
● 1100 W -48 — (-60) VDC
● 800 W Platinum 100—240 VAC or 240 HVD
Cooling Options
Air Cooling
Fans
6 Standard cold swap fans
Dimensions:
Rear Accessed configuration
Height: 42.8 mm (1.68 inches) • Width: 482.6 mm (19 inches) • Depth: 400 mm (15.74 inches) ear to rear wall - 487.7 mm (19.20 inches) with bezel - 463 mm (18.22 inches) without bezel • Weight: 11.27 kg (24.84 pounds)
Front Accessed configuration
Height: 42.8 mm (1.68 inches) • Width: 482.6 mm (19 inches) • Depth: 400 mm (15.74 inches) ear to rear wall - 566.05 mm (22.28 inches) with bezel - 472.7 mm (18.61 inches) without bezel • Weight: 11.37 kg (25.06 pounds)
Form Factor
1U rack server
Embedded Management
iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, NativeEdge Endpoint Orchestrator
Bezel
Optional bezel or security bezel with dust filter
OpenManage Software
● CloudIQ for PowerEdge plug in
● OpenManage Enterprise
● OpenManage Enterprise Integration for VMware vCenter
● OpenManage Integration for Microsoft System Center
● OpenManage Integration with Windows Admin Center
● OpenManage Power Manager plugin
● OpenManage Service plugin
● OpenManage Update Manager plugin
Mobility
OpenManage Mobile
OpenManage Integrations
● BMC Truesight
● Microsoft System Center
● OpenManage Integration with ServiceNow
● Red Hat Ansible Modules
● Terraform Providers
● VMware vCenter and vRealize Operations Manager
Security
● Cryptographically signed firmware
● Data at Rest Encryption (SEDs with local or external key mgmt)
● Secure Boot
● Secured Component Verification (Hardware integrity check)
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC9 Enterprise or Datacenter)
● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Network Options
● 1 x OCP card 3.0 (optional)
● 2 x RAN DPU (optional)
Ports:

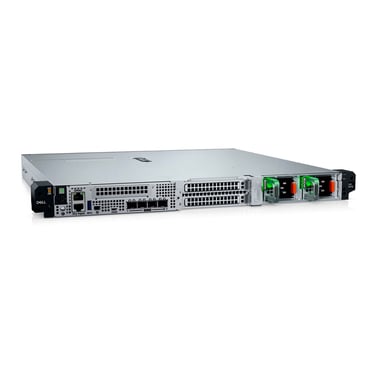

For Rear Accessed configuration
Front ports
● 1 x iDRAC Direct (Micro-AB USB 2.0) port, 1 x USB 2.0
Rear ports
● 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial (Micro-AB USB 2.0) port, 1 x Mini-DisplayPort, 1 x RJ45 for dry contact, 4 x 25 GbE SFP+ LOM
For Front Accessed configuration
Front ports
● 1 x iDRAC Direct (Micro-AB USB 2.0) port, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial (Micro-AB USB 2.0) port
● 1 x Mini-DisplayPort, 4 x 25 GbE SFP+ LOM, 1 x RJ45 for dry contact
Rear ports
● N/A
PCIe
1 CPU configuration: Up to 2 PCIe slots (2 x16 Gen5)
GPU
Up to 2 x 75 W GPUs (single-width, full-height, half-length)
Operating System and Hypervisors
● Canonical Ubuntu Server LTS
● Microsoft Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESX
● Dell NativeEdge OS
