Breakthrough performance
Forge ahead with this high-density two-socket, 1U server built for data speed and made for HPC workloads or running multiple VDI instances.
Technical Specifications
Processor
Up to two AMD EPYC 4th Generation 9004 Series with up to 128 cores per processor
Memory
● 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s
● Supports registered ECC DDR5 DIMMs only
Storage Controllers
● Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
● External HBAs (non-RAID): HBA355e
● Software RAID: S160
Drive Bays
Front Bays:
● Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB
● Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
● Up to 10 x 2.5-inchSAS/SATA/NVMe (HDD/SSD) max 153.6 TB
● Up to 14 x E3.S NVMe direct drives max 107.52 TB
● Up to 16 x E3.S NVMe direct drives max 122.88 TB
Rear Bays:
● Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB
● Up to 2 x E3.S NVMe direct drives max 15.36.8 TB
Power Supplies
● 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
● 1400 W Mixed Mode Platinum 100-240 VAC or 240 HVDC hot swap redundant
● 1400 W Mixed Mode Titanium 277 VAC or 336 HVDC hot swap redundant
● 1100 W Mixed mode 100—240 VAC or 240 HVDC, hot swap redundant
● 1100 W LVDC -48 — -60 VDC, hot swap redundant
● 800 W Platinum 100—240 VAC or 240 HVDC , hot swap redundant
Cooling Options
● Air cooling
● Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans
● Standard (STD) fans/High performance Gold (VHP) fans
● Up to 4 sets (dual fan module) hot plug fans
Dimensions
Height — 42.8 mm (1.685 inches) • Width — 482.0 mm (18.97 inches) • Depth — 822.89 mm (32.4 inches) with bezel — 809.05 (31.85 inches) without bezel
Form Factor
1U rack server
Embedded Management
● iDRAC9
● iDRAC Direct
● iDRAC RESTful API with Redfish
● iDRAC Service Manual
● Quick Sync 2 wireless module
Bezel
Optional LCD bezel or security bezel
OpenManage Software
● OpenManage Enterprise
● OpenManage Power Manager plugin
● OpenManage Service plugin
● OpenManage Update Manager plugin
● CloudIQ for PowerEdge plug in
● OpenManage Enterprise Integration for VMware vCenter
● OpenManage Integration for Microsoft System Center
● OpenManage Integration with Windows Admin Center
Mobility
OpenManage Mobile
OpenManage Integrations:
● BMC Truesight
● Microsoft System Center
● OpenManage Integration with ServiceNow
● RedHat Ansible Modules
● Terraform Providers
● VMware vCenter and vRealize Operations Manager
Security
● AMD Secure Encrypted Virtualization (SEV)
● AMD Secure Memory Encryption (SME)
● Cryptographically signed firmware
● Data at Rest Encryption (SEDs with local or external key mgmt)
● Secured Component Verification (Hardware integrity check)
● Secure Boot
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC9 Enterprise or Datacenter)
● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
GPU Options
3 x 75 W SW
Ports:

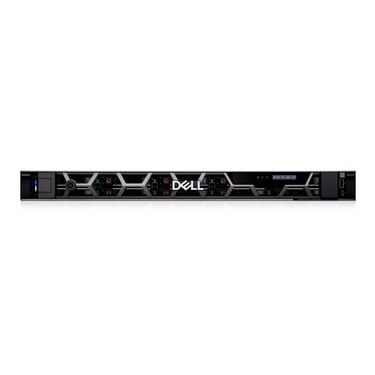

Front ports
● 1 x iDRAC Direct (Micro-AB USB) port
● 1 x USB 2.0
● 1 x VGA
Internal ports
● 1 x USB 3.0 (optional)

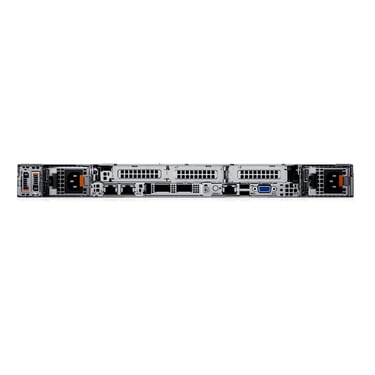

Rear ports
● 1 x Dedcated iDRAC Ethernet port
● 1 x USB 3.0
● 1 x USB 2.0
● 1 x Serial (optional)
● 1 x VGA (optional for Direct Liquid Cooling configuration)
PCIe
Up to three PCIe slots
● Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length
● Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length
● Slot 3: 1 x16 Gen5 or1 x16 Gen4 Low profile, Half length
Network options
1 x OCP 3.0 card (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
Embedded NIC
2 x 1 GbE LOM card (optional)
PCIe
Up to 8 x PCIe Gen4 slots
Operating System and Hypervisors
● Canonical Ubuntu Server LTS
● Microsoft Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi
