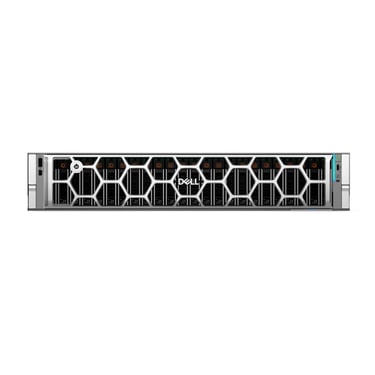

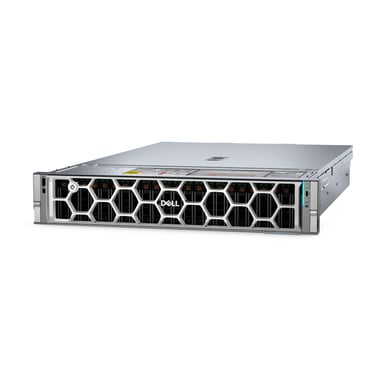

Breakthrough performance that scales
Designed to be the backbone of your data center, this highly scalable server delivers exceptional performance and flexible configuration options
Technical Specifications
Processor
Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor
Memory
● 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 6400 MT/s
● Supports registered ECC DDR5 DIMMs only
Storage controllers
● Internal Controllers (RAID): PERC H365i,H965i, H975i
● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
● External HBAs (non-RAID): HBA465e
Drive Bays
Front bays:
● 12 x 3.5-inch SAS/SATA
● 8 x 2.5-inch Universal / 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA
● 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID
● 8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S / 40 x EDSFF E3.S
Power Supplies
● Platinum: 800W, 1100W
● Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC*, 1800W*, 2400W*, 3200W, 3200W 277Vac & HVDC
● Telco: 1400W -48VDC
Cooling Options
Air cooling, Direct Liquid Cooling (DLC)
Fans
● Up to six hot plug fans
Dimensions
Height — 86.8 mm (3.42 inches) • Width — 482 mm (18.98 inches) • Depth — 802.4 mm (31.59 inches) with bezel — 801.51 mm (31.55 inches) without bezel
Form Factor
2U rack server
Embedded Management
● iDRAC10
● iDRAC Direct
● iDRAC RESTful API with Redfish
● Racadm CLI
● Quick Sync 2 wireless module
Bezel
Optional metal bezel
OpenManage Consoles
● OpenManage Enterprise (OME)
● OME Power Manager
● OME Services
● OME Update Manager
● OME APEX AIOps Observability
● OME Integration for VMware vCenter (with VMware Aria Operations)
● OME integration for Microsoft System Center
● OpenManage Integration for Windows Admin Center
Mobility
N/A
Tools
IPMI
Integrations and Connections
OpenManage Integrations
● RedHat Ansible Collections
● Terraform Providers
Change Management
● Dell Repository Manager
● Dell System Update
● Enterprise Catalogs
● Server Update Utility (SUU)
Security
● AMD Secure Encrypted Virtualization (SEV)
● AMD Secure Memory Encryption (SME)
● Cryptographically signed firmware
● Data at Rest Encryption (SEDs with local or external key mgmt)
● Secure Boot
● Secured Component Verification (Hardware integrity check)
● Secure Erase
● Silicon Root of Trust
● System Lockdown
● TPM 2.0 FIPS, CC-TCG certified
● Chassis Intrusion Detection
GPU Options
Up to 2 x 450W DW; Up to 6 x 75W SW
Ports:
Front ports
● 1 x USB 2.0 Type-A (optional LCP KVM)
● 1 x USB 2.0 Type-C (HOST/BMC Direct)
● 1 x Mini DisplayPort (optional LCP KVM)
Internal ports
● 1 x USB 3.1 Type-A
Rear ports
● 1 x dedicated BMC Ethernet port
● 2 x USB 3.1 Type-A
● 1 x VGA
PCIe
Up to eight PCIe slots (x8 or x16 connector)
● Slot 1: 1 x8 Gen5 Full Height
● Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
● Slot 3: 1 x16 Gen5 Full Height or Low Profile
● Slot 4: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 OCP3.0
● Slot 5: 1 x8 Gen5 Full Height
● Slot 7: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
● Slot 8: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height
● Slot 9: 1 x16 Gen5 Full Height or Low Profile
Gen5 PCIe slots
8
OCP Network options
● 2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
● Slot 4: 1 x16 Gen5 second OCP 3.0
● Slot 10: 1 x16 Gen5 OCP3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
PCIe Add-in Card (AIC) NIC
100 GbE and 400GbE; NDR VPI (400GbE); FC 32 / 64
Operating System and Hypervisors
● Canonical Ubuntu Server LTS
● Microsoft Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi
