Compute, storage, density & scalability
Future-ready with multiple generations of compute, storage, and networking. Easy to deploy, manage, and service; leverage data for faster outcomes.
Technical Specifications
Processor
● Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor
● Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
● Intel® C741 chipset with optional Intel® QuickAssist Technology
Memory
32 DDR5 DIMM slot, supports RDIMM max 8 TB, speeds up to 5600 MT/s
Availability
Supports registered ECC DDR5 DIMMs only
Storage controllers
● Internal controllers: PERC H755 MX, PERC H965i MX, HBA350i MX
● Internal boot: USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
● Software RAID: S160
Drive Front Bays
● Up to 4 x 2.5-inch SAS/SATA (HDD/SSD) max 61 TB
● Up to 6 x 2.5-inch SAS /SATA (HDD/SSD) max 46.08 TB
● Up to 6 x 2.5-inch NVMe/SAS/SATA (HDD/SSD) max 92 TB

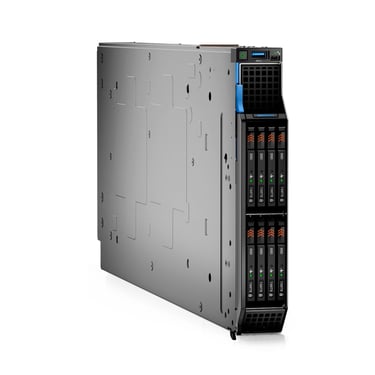

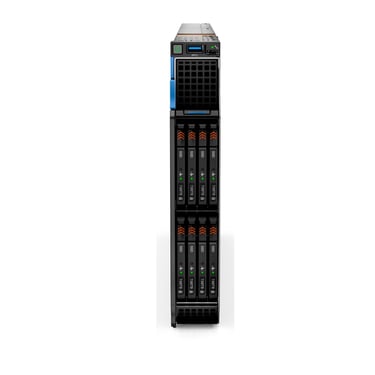

● Up to 8 x E3.s NVMe PCIe Gen 5 SSD max 61 TB
Power Supplies
MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support
Fans
MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy (Gen 2 fan required)
Dimensions
Height — 51.0 mm (2 inches) • Width — 257.0 mm (10 inches) • Depth — 631.77 mm (24.8 inches)
Weight
8.59 kg (18.93 pound)
Form Factor
Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
Embedded Management
MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular);
● Up to 2 redundant MX9002m management modules
● Unified control: single management point for server, storage and networking
● Intelligent automation: Operational template methodology and comprehensive RESTful API
● Quick Sync 2 Bluetooth Low Energy (BLE) / wireless module option
On compute sled:
● iDRAC9
● iDRAC Direct
● iDRAC RESTful API with Redfish
● iDRAC Service Module
OpenManage Software
● CloudIQ for PowerEdge plug in
● OpenManage Enterprise
● OpenManage Enterprise Integration for VMware vCenter
● OpenManage Integration for Microsoft System Center
● OpenManage Integration with Windows Admin Center
● OpenManage Power Manager plugin
● OpenManage Service plugin
● OpenManage Update Manager plugin
OpenManage Integrations
● BMC Truesight
● Microsoft System Center
● OpenManage Integration with ServiceNow
● Red Hat Ansible Modules
● Terraform Providers
● VMware vCenter and vRealize Operations Manager
Security
● Cryptographically signed firmware
● Data at Rest Encryption (SEDs with local or external key mgmt)
● Secure Boot
● Secured Component Verification (Hardware integrity check)
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC9 Enterprise or Datacenter)
● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Ports:
Front ports
● 1 x iDRAC Direct port (Micro-AB USB)
● 1 x USB 3.0
Internal port
● 1 x USB 3.0
Networking_Options (NDC)
● MX7000 chassis Fabric options: up to 2 pairs redundant general purpose switch or passthrough modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C)
● Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel
PCIe
● One x16 PCIe Gen4 slot for PERC - connected to processor 1
● One x16 PCIe Gen4 slot for Mezz A - connected to processor 1
● One x16 PCIe Gen5 slot for Mezz B - connected to processor 2
● One x16 PCIe Gen4 slot for Mini Mezz - connected to processor 1
● Two x8 PCIe Gen5 (SL1, SL2) connectors for NVMe drive – connected to processor 1
● Two x8 PCIe Gen5 (SL4, SL5) connectors for NVMe drive – connected to processor 2
● One x4 PCIe Gen4 for BOSS-N1 HWRAID card
Operating System and Hypervisors
● Canonical Ubuntu Server LTS
● Microsoft Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware vSAN/ESXi
